Quality Mori Seiki SL80-B, Mori Seiki SL8-C and SL80-C for Sale
ACS is pleased to offer a selection of CNC machines that will help your company get the job done right. Whether you're interested in our Mori Seiki SL-80-B, SL8-C or SL80-C you'll find exactly what you want. Call us to discuss prices and for more details about our great machines.

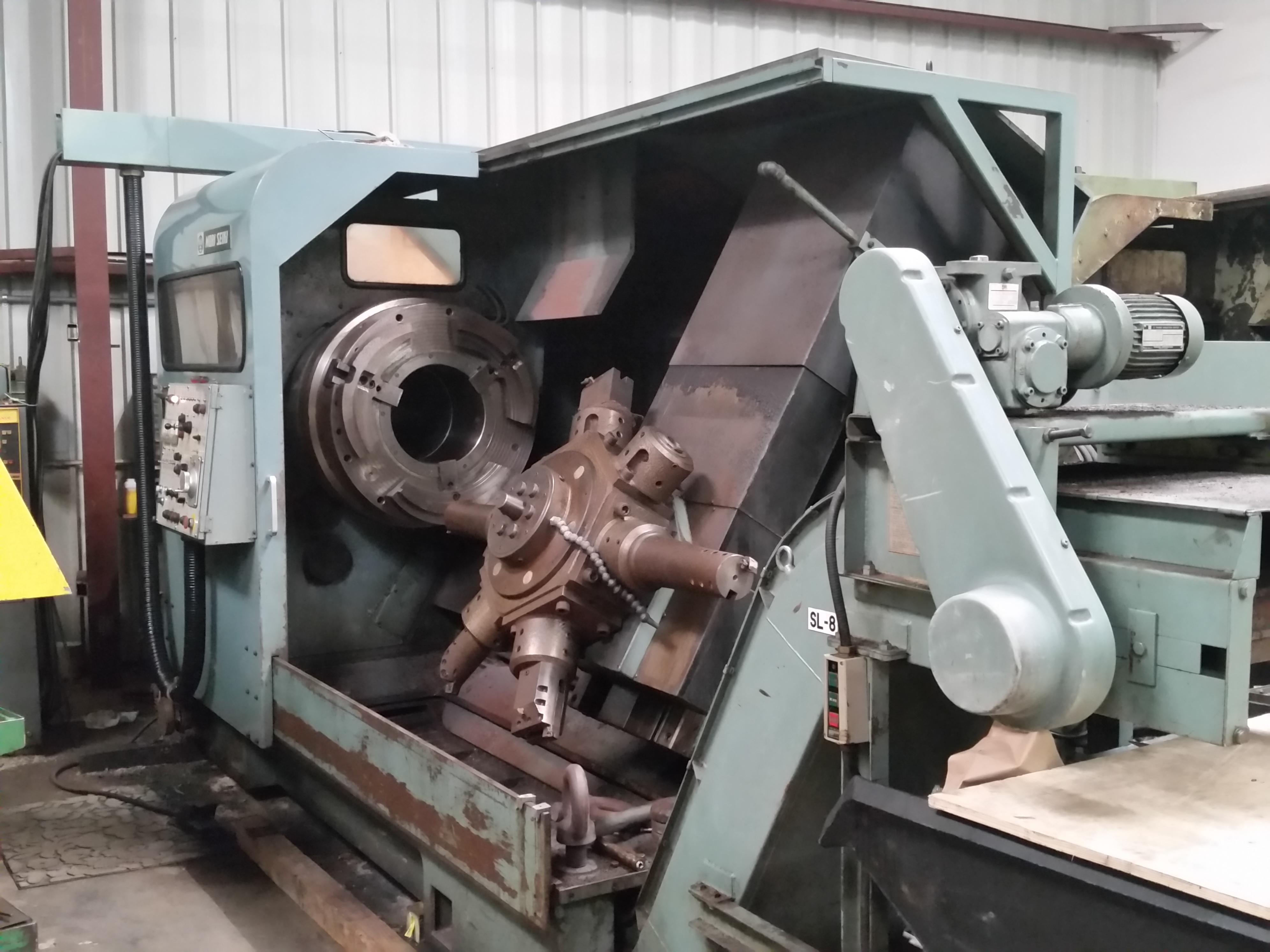

Sl8C Mori Seiki in Excellent condition

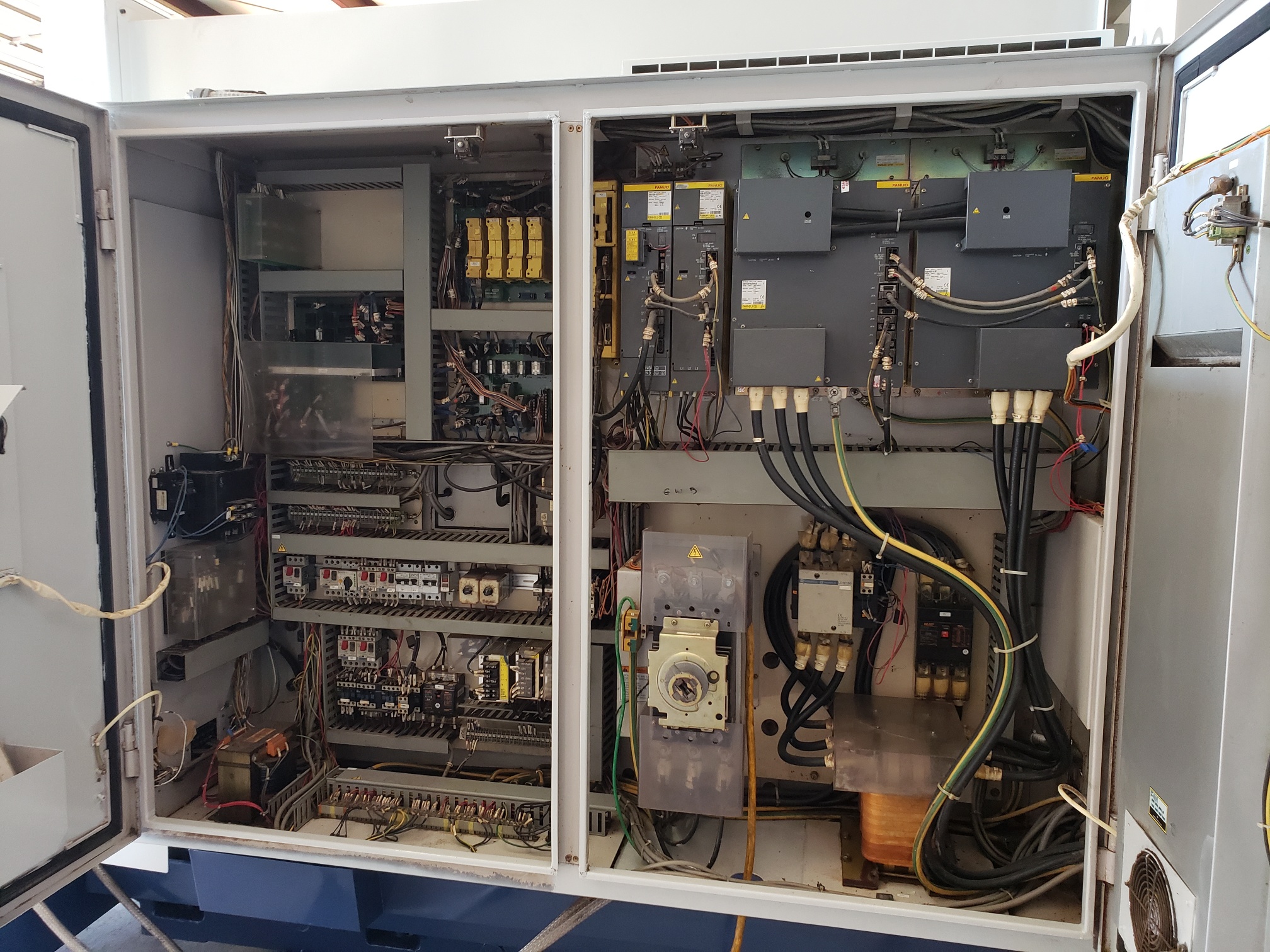

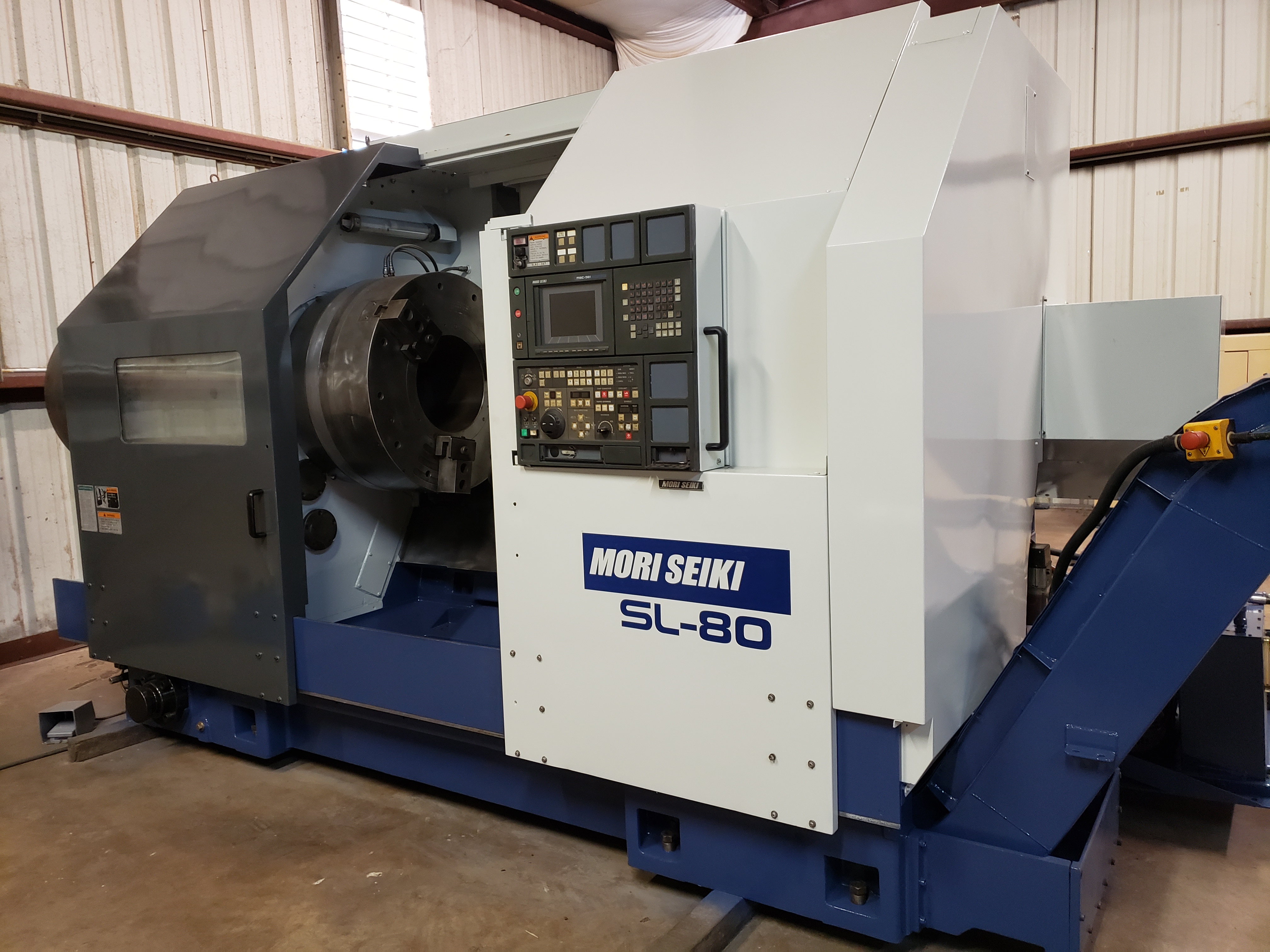

SL80-C Mori Seiki 2000 vintage (Available week of 6/1/2019)

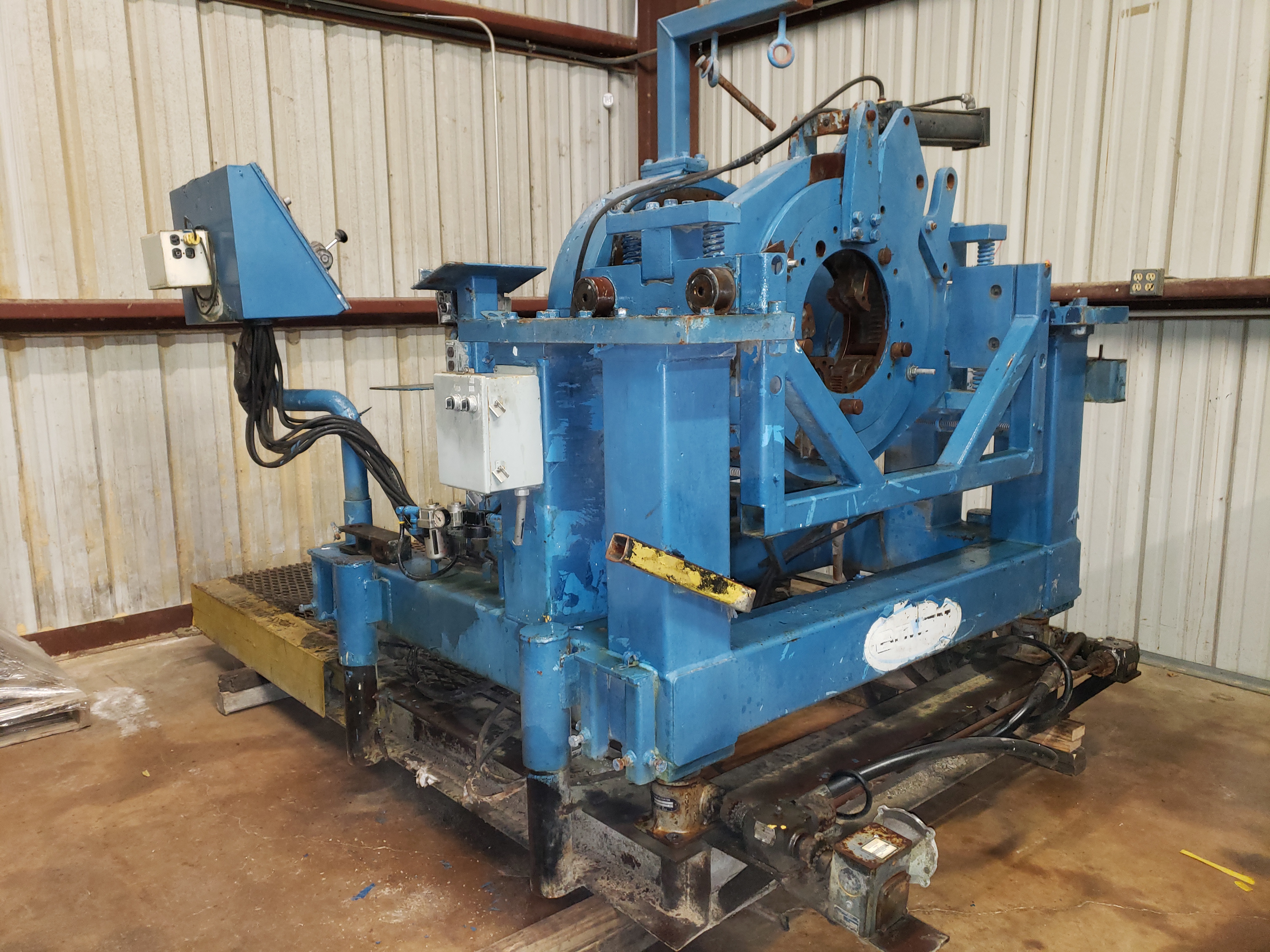

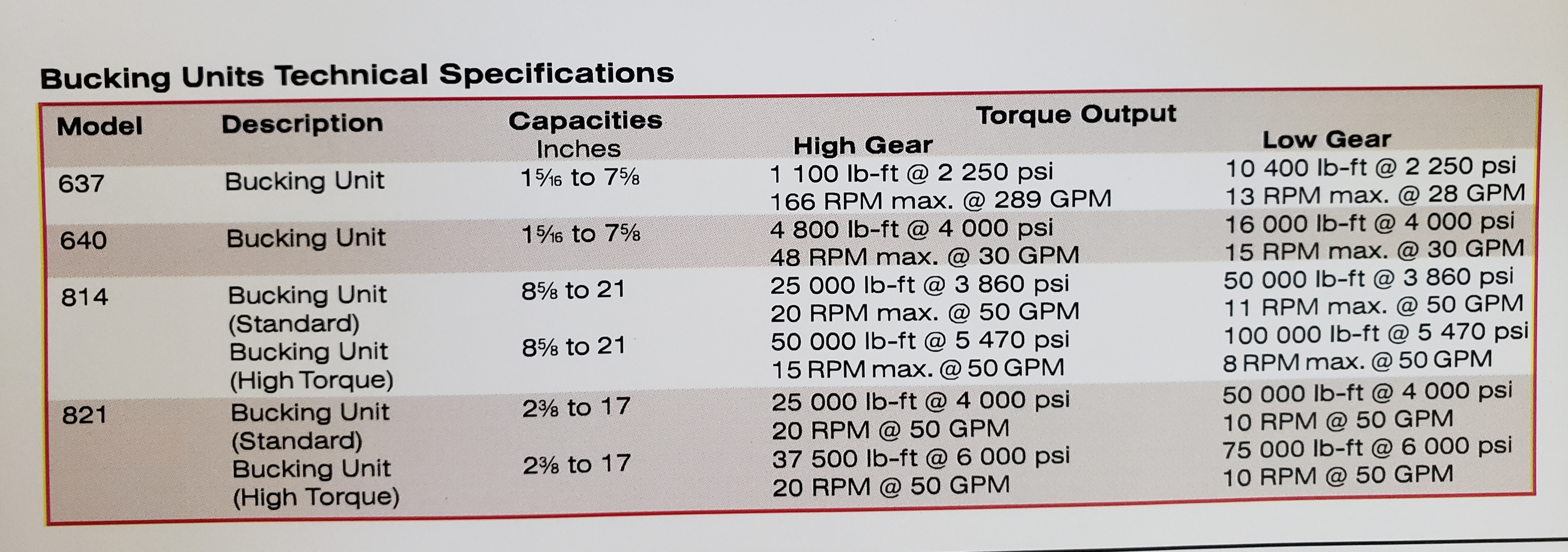

Bucking Unit Peck-o-Matic 821 2 3/8" - 17" See bottom of page for Specs
Mori Seiki SL80-B
For sale a Mori Seiki SL80-B with Fanuc 11T Control. It's in great condition and comes equipped with the following:
• Fanuc AC Red Cap Servo Motors • (4) Holders
• (2) Posts • Chip Conveyor
Specifications:
Swing over Bed
39.3"
Swing over Carriage
35.4"
Distance between Centers
43.3"
Max Turning Diameter
35.4"
Max Cross Travel
16.5"
Spindle Bore
10.2"
Spindle Speeds
10-550 RPM
Spindle Nose
A2-20
Turret Stations
6
Slant of Bed
60 Degrees
Main Motor
60 HP
Machine Weight
35,200 lbs

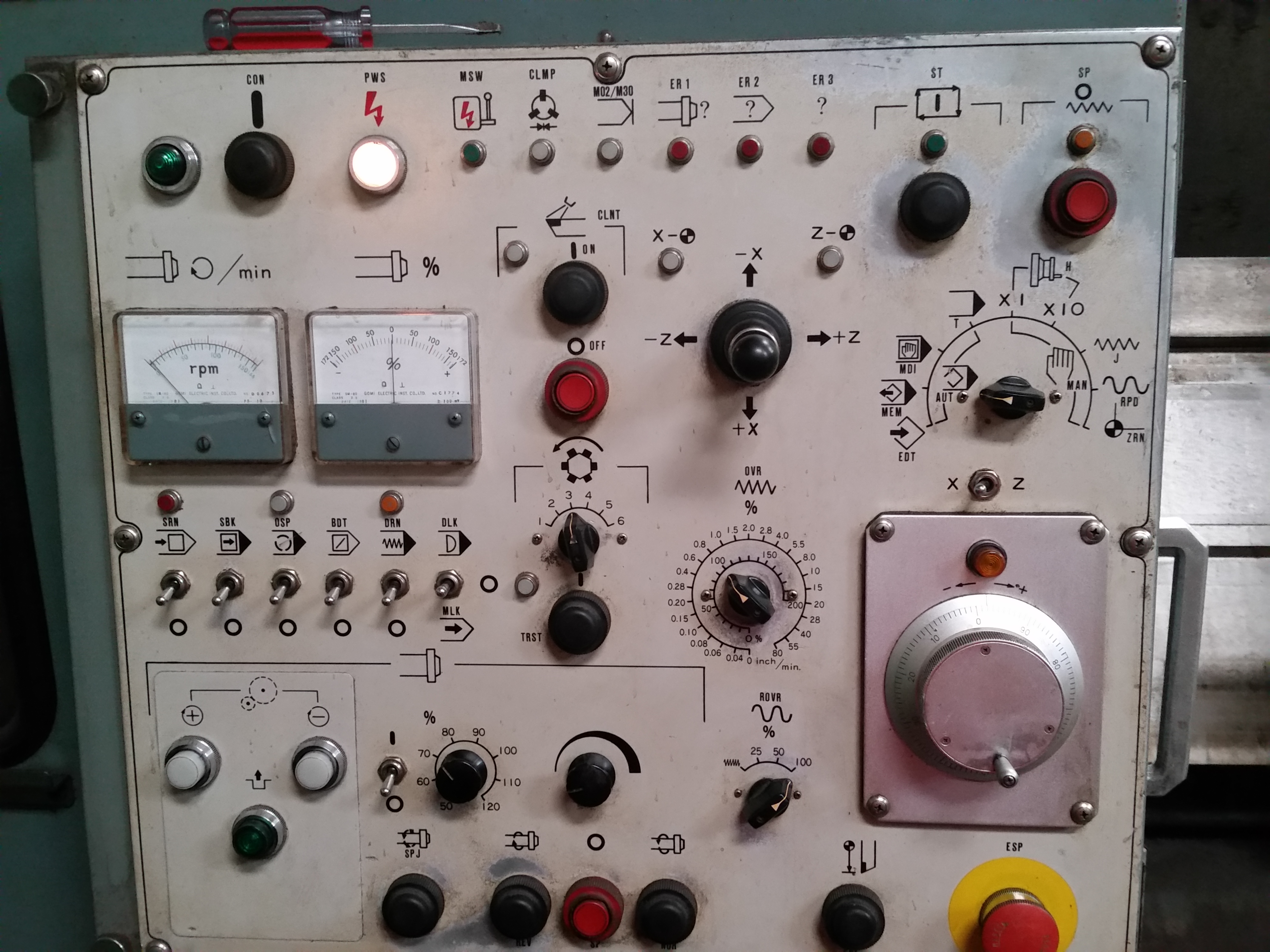

Mori Seiki SL8-C, SL80-C

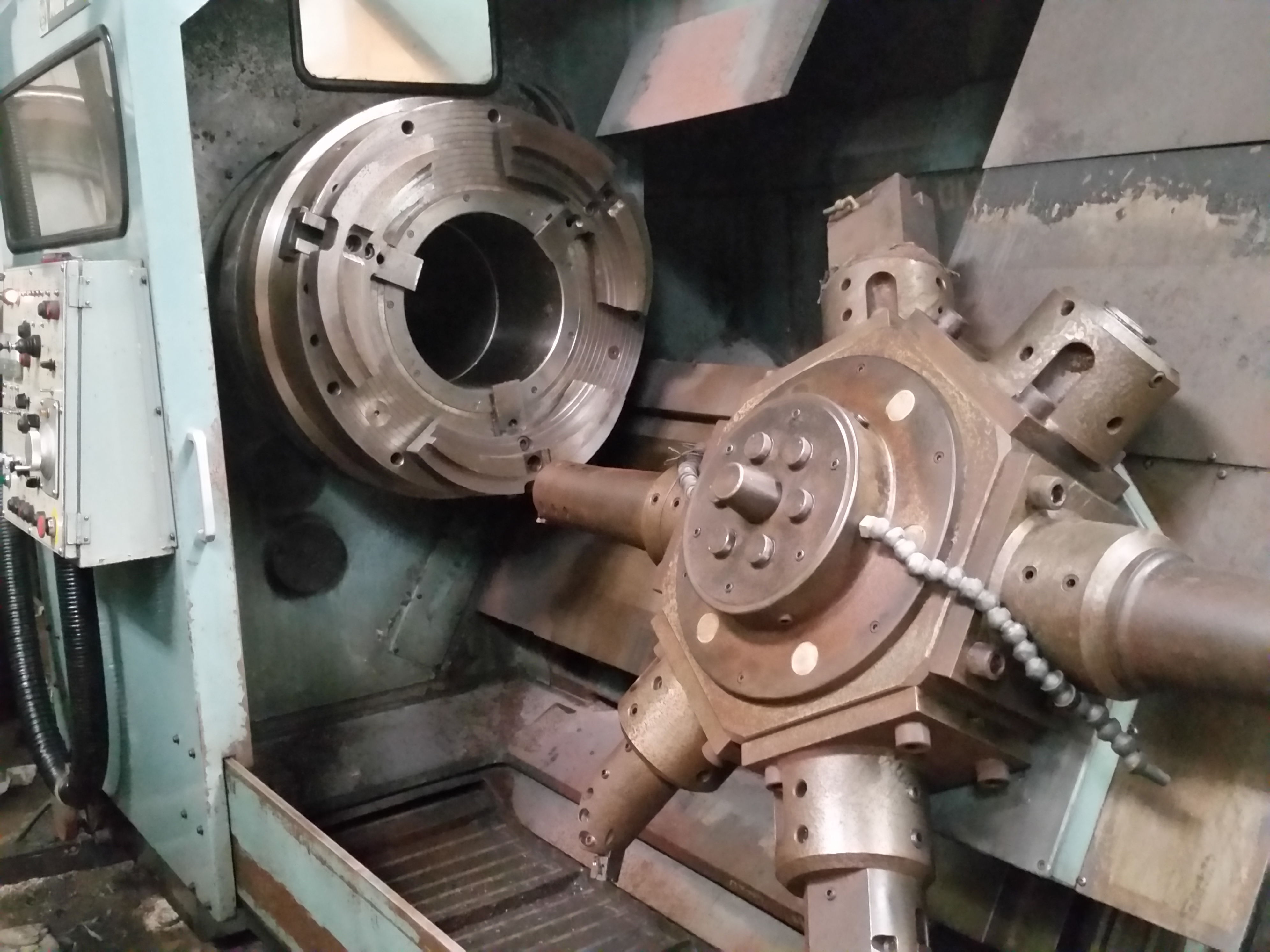

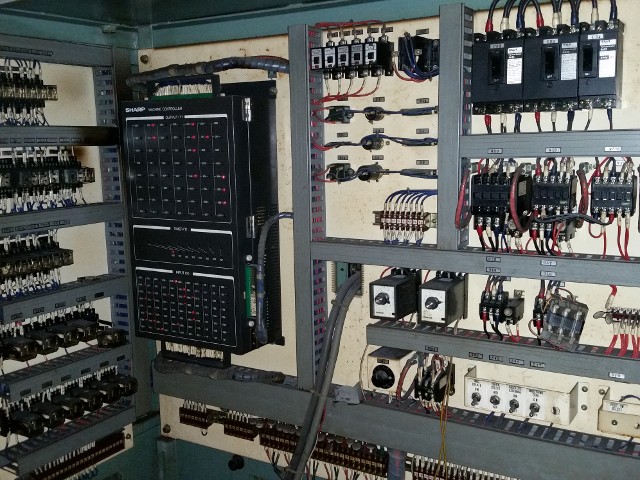

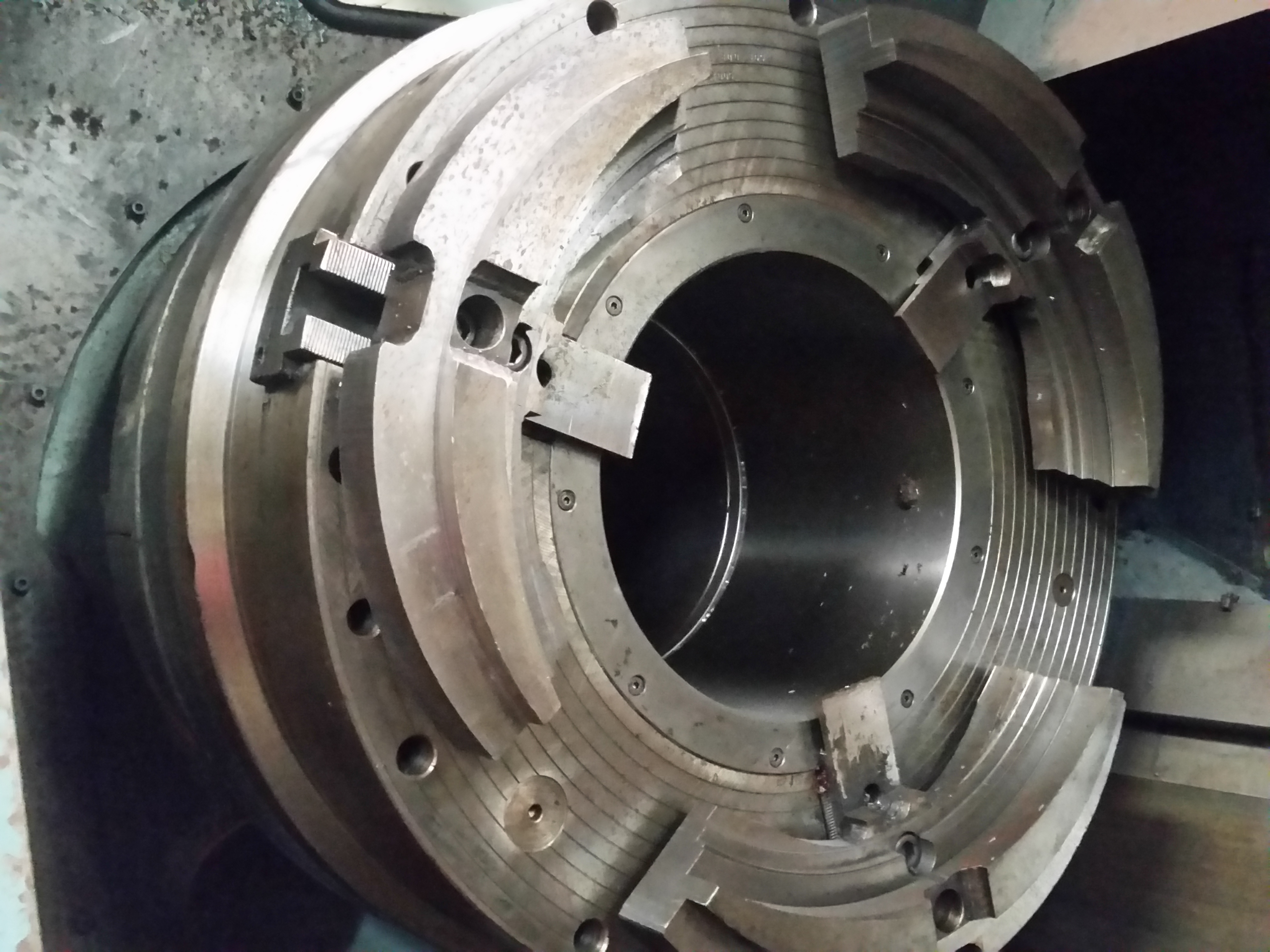

For sale a Mori Seiki SL8-C. It's in excellent condition with a 32" SMW Air chuck
Also available is a 2000 Mori Seiki SL80-C with front and rear SMW Extended stroke chucks (Pictured above)
• Fanuc Control • Holders & Posts
• Fanuc Servo and Motors
Specifications:
Swing over Bed
39.3"
Swing over Carriage
35.4"
Distance between Centers
43.3"
Max Turning Diameter
35.4"
Max Cross Travel
16.5"
Spindle Bore
14.5"
Spindle Speeds
10-370 RPM
Turret Stations
6
Slant of Bed
60 Degrees
Main Motor
60 HP
Machine Weight
35,200 lbs
Peck-O-Matic Model 821 Bucking Unit High Torque

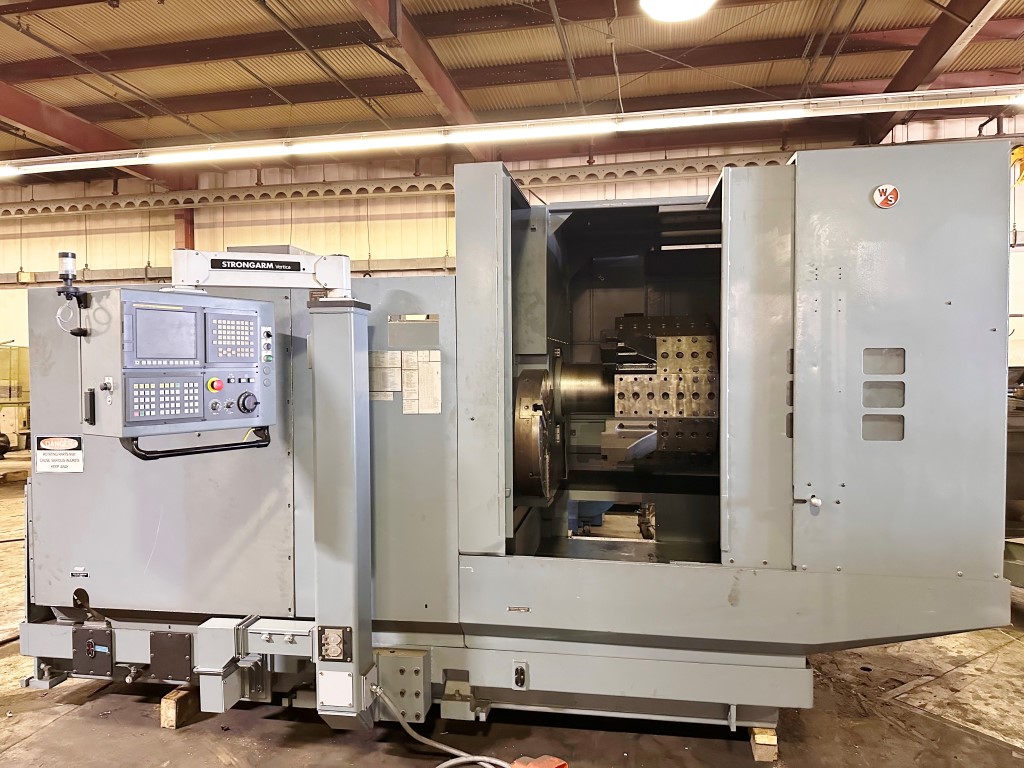

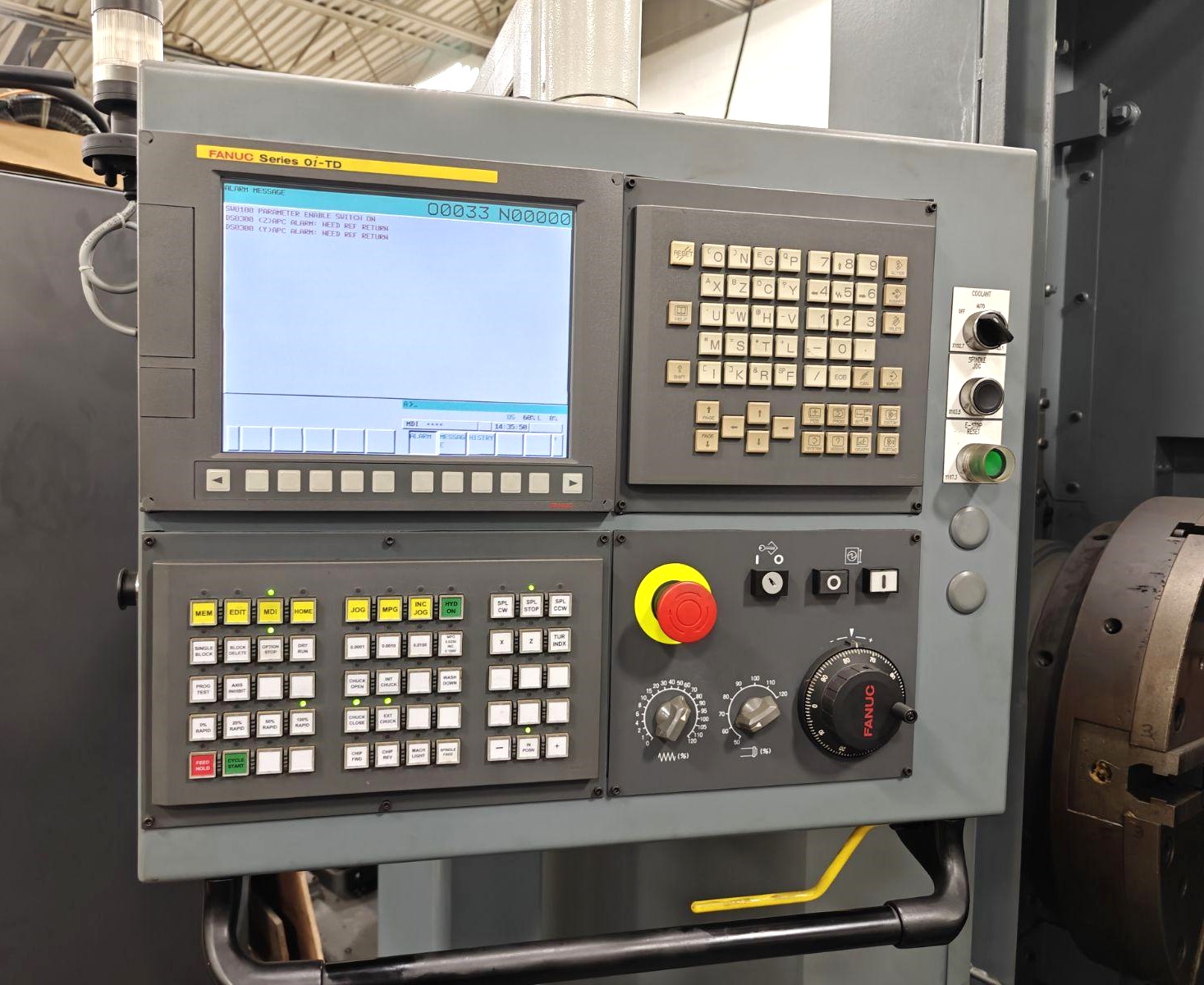

2012 Warner Swasey Retroffited with Fanuc 0iTD
2012 Warner Swasey Retroffited with Fanuc 0iTD Very low Hrs, in Excellent shape
2012 Warner Swasey Retroffited with Fanuc 0iTD Very low Hrs, in Excellent shape

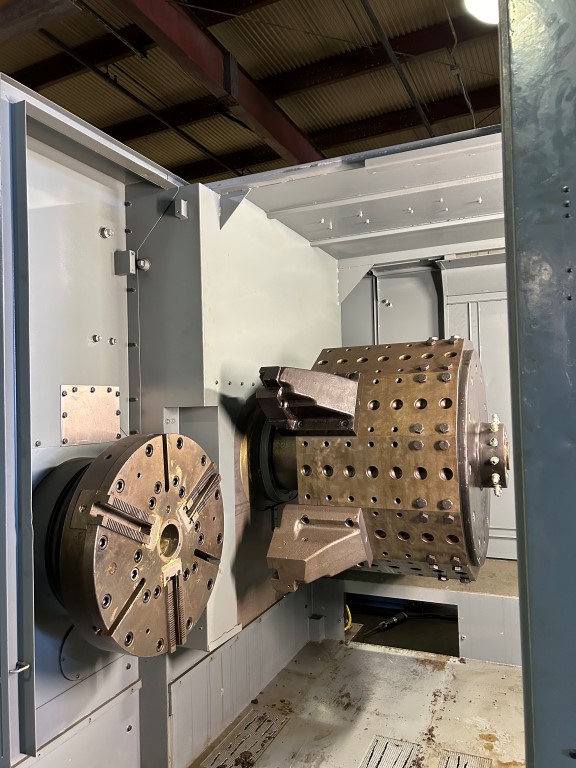

W&S 3SC-24 TURNING CENTER
Retrofitted in 2012 by Bardons & Oliver (B&O)
Excellent Condition
SPECIFICATIONS: Chuck Size: 24" Maximum Swing Diameter Over Turret Bar: 39-7/8" Maximum Swing Diameter Over Turret Face: 18-7/16" Longitudinal Work Area: 33-5/8" Tooling OD Cutter (Qualified): 1-1/2 sq. x 6" Bore In ID Holder: 4" Number of Turret Stations: 12 Turret Length: 20-3/4" Longitudinal Stroke: 15" Cross Stroke: 12-3/4" Maximum Motion Rate: .01 to 250 IPM Motor - Heavy Duty DC Variable Speed: 75 HP Spindle Speeds: 19-838 RPM Spindle Nose: A1-15 Thru Hole in Spindle: 8-1/4" Floor Space (Approx.) With Cabinet Doors Open: 206" x 124" Shipping Weight (Approx.) 32,500 lbs. EQUIPPED WITH:
Automated Controls System
